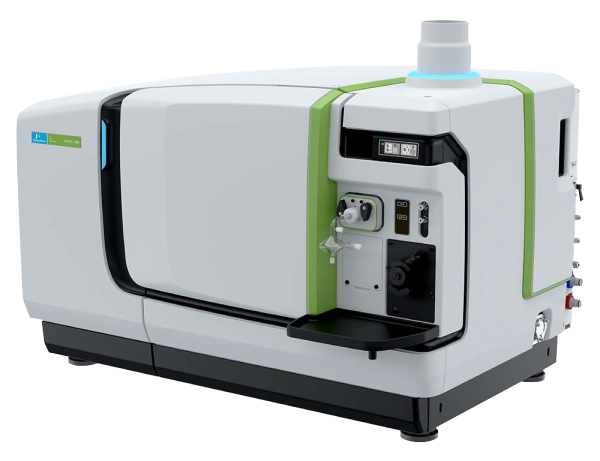

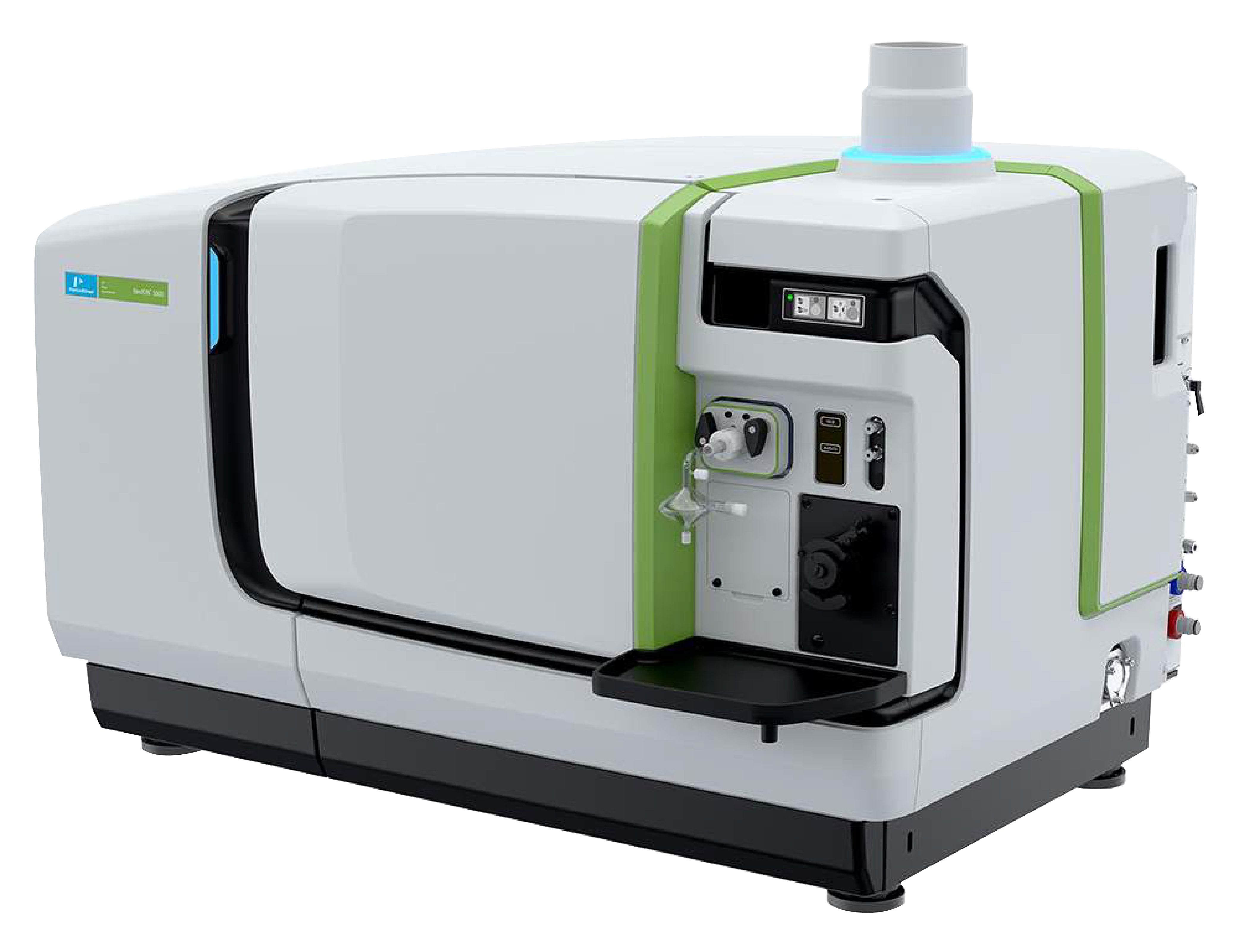

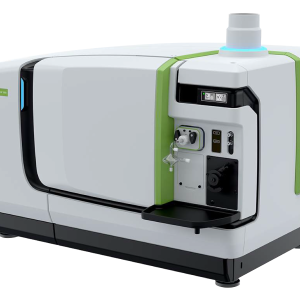

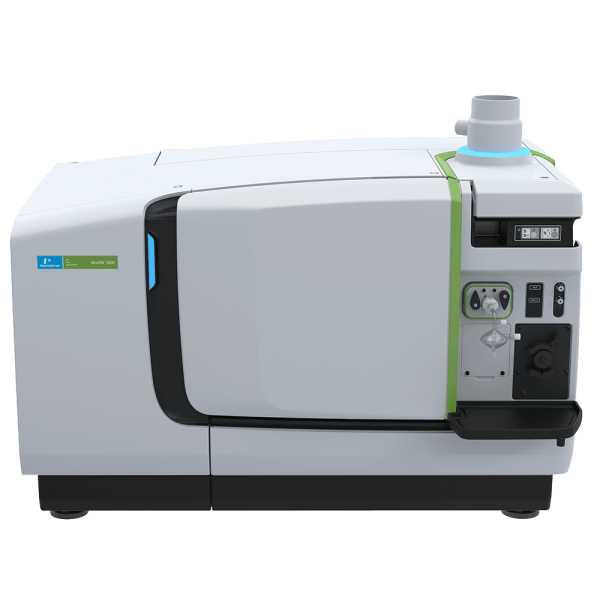

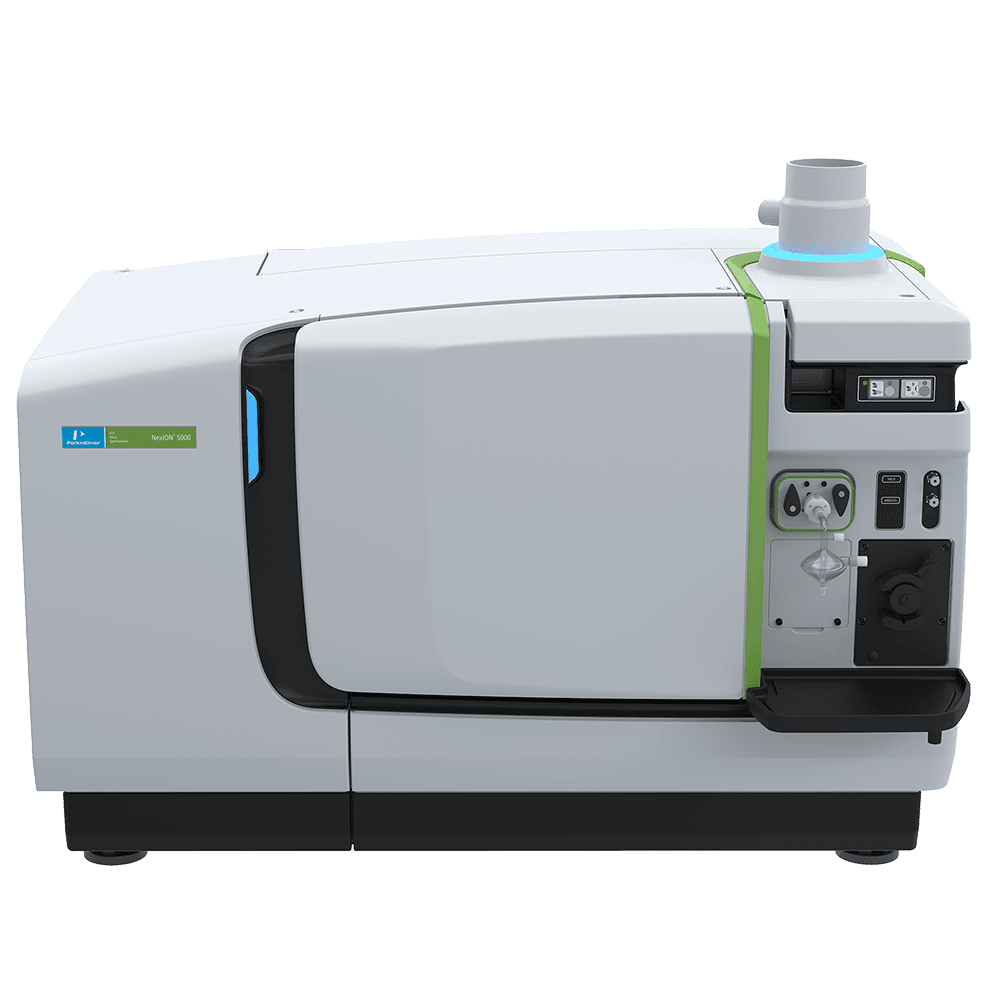

NexION™ 5000 Non-Cleanroom ICP Mass Spectrometry System was recommended for applications that do not require cleanroom environments but still demand the unprecedented sensitivity and interference removal capabilities of the NexION™ 5000 series, this system features a range of new and proprietary technologies that deliver exceptional detection limits, remarkable accuracy, outstanding repeatability, and long-term stability to meet your most demanding application needs:

• The Industry’s First Four-Quadrupole ICP-MS system
  • First Quadrupole (Q0): The ion guide quadrupole directs target ions into the first mass filter.
  • Second Quadrupole (Q1): A full-sized resolving quadrupole (<0.7 amu mass resolution) that can operate as a mass filter or as an ion guide, channeling ions toward the reaction/collision cell.
  • Third Quadrupole (Q2): A collision/reaction quadrupole (Dynamic Bandpass Tuning-enhanced Universal Cell) that suppresses side reactions with residual reaction gases, improving interference removal.
  • Fourth Quadrupole (Q3): Another full-sized resolving quadrupole (<0.7 amu mass resolution) functioning as either a mass filter or ion guide to direct ions toward the detector.
• Extended Dynamic Range (EDR) increases linear dynamic range to 10¹⁴allowing simultaneous analysis of high-and low-concentration samples in a single run reducing the need for reruns and increasing overall efficiency.
• Minimal Maintenance – Maximum Uptime:
  • The combination of the Triple Cone Interface and Q0 ion guide means the downstream mass filtering system requires no routine maintenance, allowing for continuous operation and improved long-term stability.
  • 34 MHz free-running RF generator offers trouble-free user experience - the plasma is generated by the unique LumiCoil™ RF load coil, which is air cooled (does not require water or gas cooling), so maintenance-free, eliminating need to replace plasma load coils
• External status lighting provides easy visibility of state of analysis, optimizing efficiencies
• Syngistix™ for ICP-MS software (v. 3.0 or higher) brings together the power of the triple-quad ion optics with automated startup, optimization, batch analysis and shutdown, user-friendly workflows, and more in a contemporary user interface
